DESCRIPTION

Basic Info.

Model NO.	Diamond Segment
Transport Package	Plastic Packing
Specification	24x 3.2/3.6x 13(14) mm - 22.5x 14/15x 14(15) mm
Trademark	BCMC
Origin	Putian, Fujian, China
HS Code	8207901000
Production Capacity	5000 Pieces/Month

Product Description

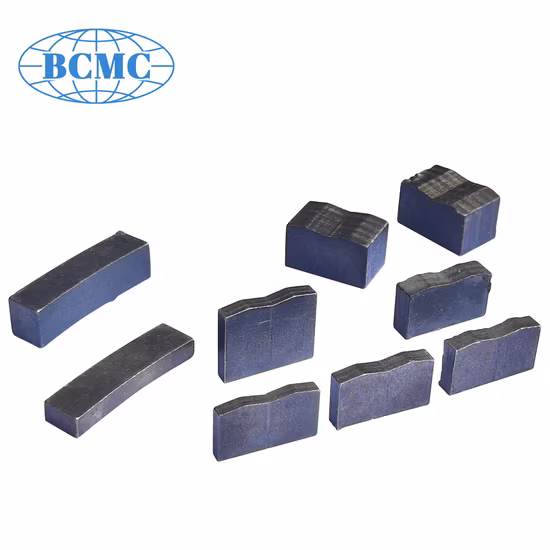

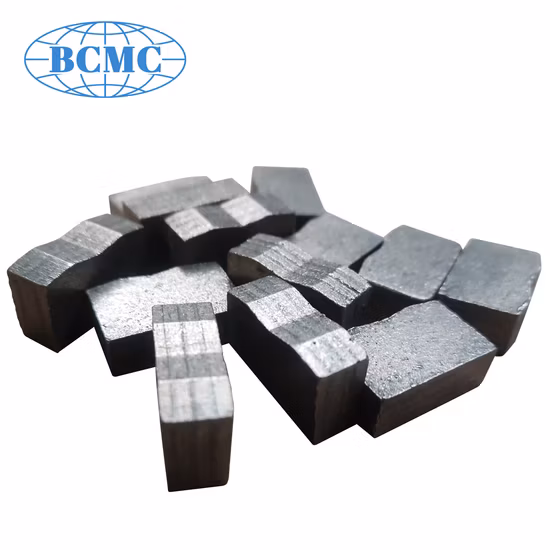

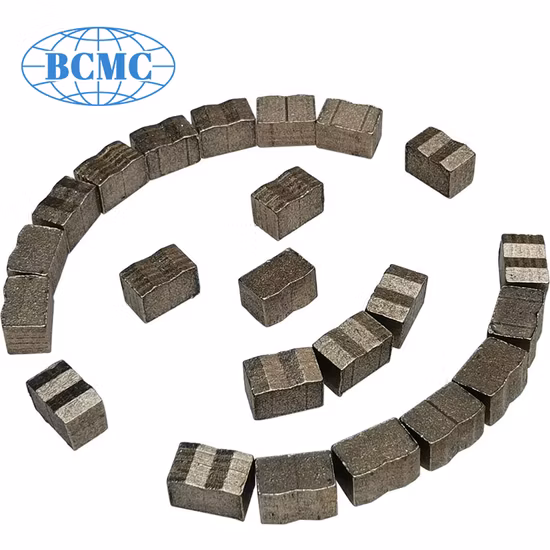

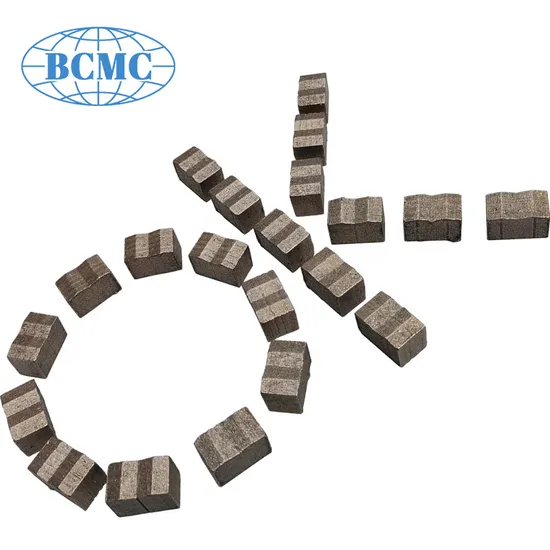

BCMC Diamond Segment for granite marble cutting saw blade takes high quality raw materials for product producing. With good formula and matrix which ensure the long time use. Perform well in stone cutting and welcomed by customers all over the world.
Main Features:

1. Adopt with premium quality material for product producing. Meticulous in choosing the high strength diamond single crystal and high quality metal matrix (Co, Ni, Wu, Ti, Cu-Fe, etc.)
2. Mature processing technology. The chemical bond formed after sintering can reduce the possibility of threshing and do the improve to the edge. Changing the single grinding function to the combination function of grinding and cutting. Optimize the sawing performance.
3. Good sharpness, high efficiency and durable wear resistance which prolong the product's service life.
4. Different professional formula for all kinds of stone materials targeted, suitable for cutting stone in different hardness.

Parameter:

Product Name	Diameter	Steel Core	Segment	Segment	Application
	(mm)	Thickness(mm)	Dimension(mm)	Number
Slab Cutting Segment For Stone	φ350	2.2/2.4	24x 3.2/3.6x 13(14)	34	Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, MicrocrystalStone
	φ400	2.6/2.8	24x 3.8/4.2x 13(14)	38
	φ450	2.8/3.0	24x 4.2/4.6x 13(14)	42
	φ500	2.8/3.0	24x 4.4/4.8x 13(14)	48
	φ600	3.6	24x 4.8/5.2x 13(14)	58
	φ700	4	24x 5.4/5.8x 13(14)	68
	φ800	4.5	24x 5.6/6.0x 13(14)	80
Block Splitting Segment For Stone	φ1200	5.5	24x 6.8/7.2x 13(14)	80
	φ1500	6.5	24x 8.0/8.4x 13(14)	92
	φ1600	7.2	24x 8.6/9.0x 13(14)	108
	φ2000	8	24x 9.4/10x 13(14)	128
	φ2500	9	24x 10.6/11x 13(14)	140
	φ3000	10	24x 11/11.6x 13(14)	160
Other specifications are available upon request.
Silent and non-silent blades are available for choice.

Block Mining Segment for Stone quarrying
Diameter	Steel Core	Segment	Segment	Application
(mm)	Thickness(mm)	Dimension(mm)	Number
φ2000-2800	9-10	22.5x 11.6/12.6x 14(15)	128-150	Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz
φ3000-3600	9-10	22.5x 12.6/13.6x 14(15)	160-180
φ2000-2800	9-10	22.5x 13/14x 14(15)	128-150
φ3000-3600	9-10	22.5x 14/15x 14(15)	160-180
φ4000-5000	11-11.5	22.5x 14/15x 14(15)	198-228

Producing Flow:

Application:
* Slab stone blade
* Block splitting blade
* Mining block blade
* Quarry stone blade
